Comfort Zone Lateral Rotation

Name: Comfort Zone Lateral Rotation
Brand: Medacure
SKU: LRM36
Price: 3149.0 GBP
Availability: InStock

£3,149.00 GBP

Availability:

in stock, ready to be shipped

Combines 3 therapies: Lateral Rotation, Alternating Pressure and Low Air Loss, to effectively treat pressure ulcers.

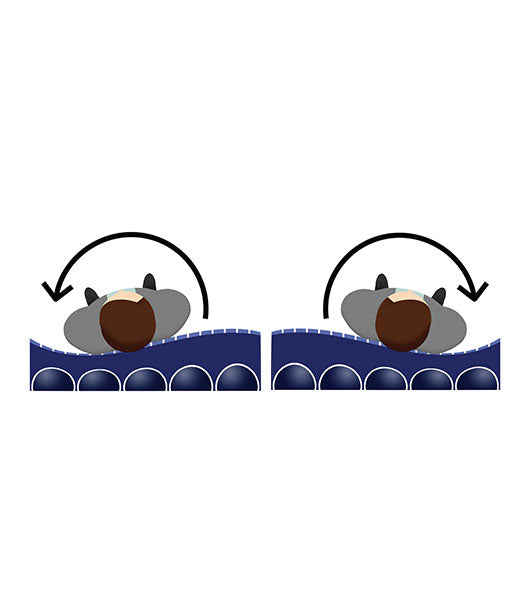

Lateral Rotation
Rotates the patient from side to side to provide proper pressure redistribution
Alternating Pressure
Redistributes pressure throughout the length of mattress.
Low Air Loss
Treats bed sores by creating a dry cool environment

Features

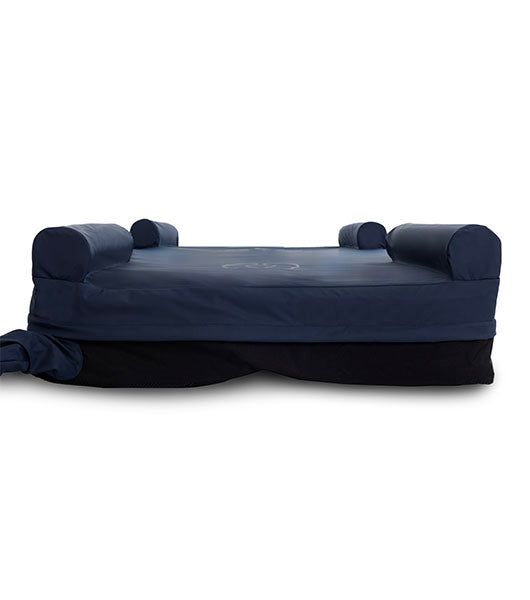

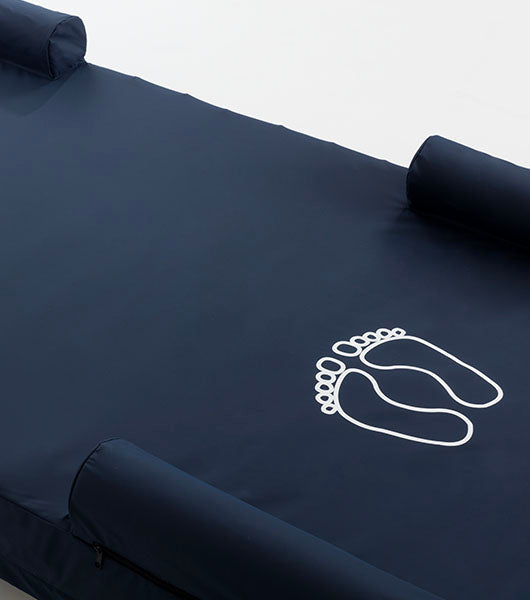

Mattress

Alternating Pressure
Low Air Loss
Lateral Rotation

Top 3 cells at the head section remain static for ultimate patient comfort
Adjustable straps secure mattress to bed frame

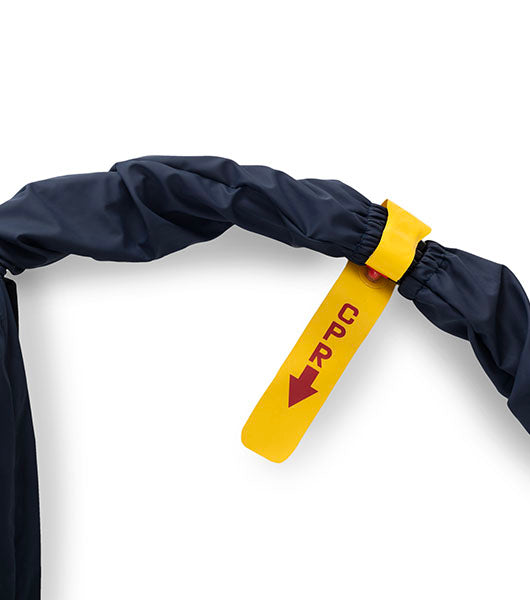

CPR quick deflate function

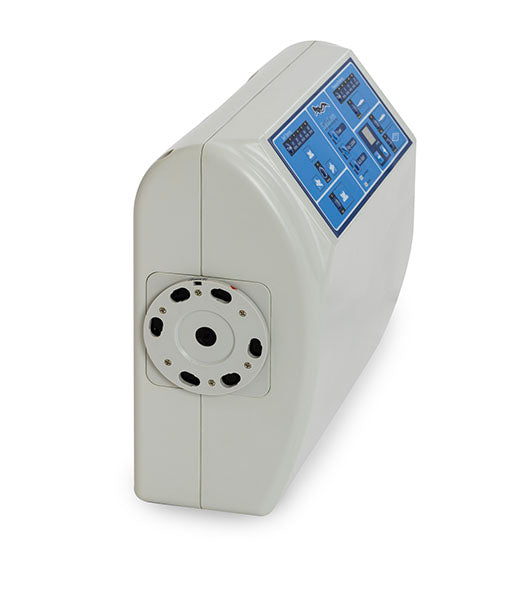

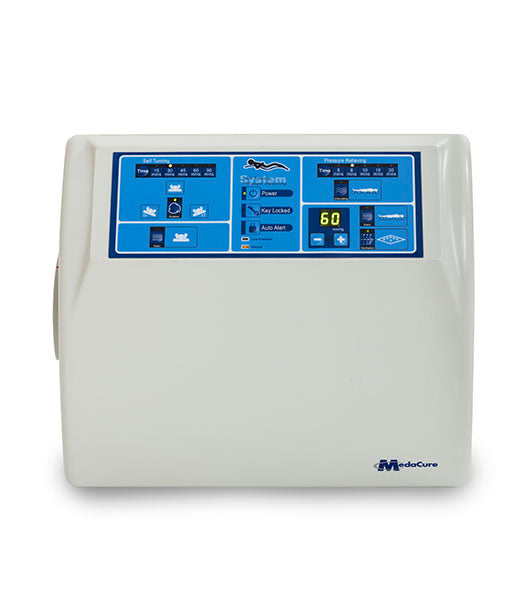

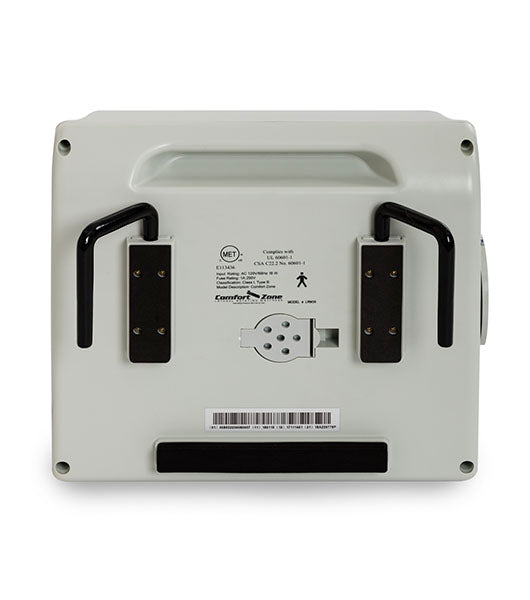

Pump

Alternating Pressure and Static Function
Comfort Level Adjustable
Low Air Loss on/off Function
5 Level Cycle Time Adjustable
5 Level Rotation Time Adjustable
Rotation On/Off Function
Panel Lock Function

Pressure Range – Digital readout adjusts pressure range from 30 – 60mmh
Alternating Cycle Time – 5, 8, 10, 15, 20 minutes selectable
Low Pressure Alert
Power Failure Alert
Audible Alarm Mute Function
Quick-change Air Filter

Specifications

Function	Specification
LATERAL ROTATION	SAFE 30 DEGREE ANGLE ROTATES PATIENT SIDE TO SIDE
ALTERNATING PRESSURE	18 ALTERNATING PRESSURE CELLS + TOP 3 CELLS REMAIN STATIC
LOW AIR LOSS	21
TOTAL NUMBER OF CELLS	PREVENTS BOTTOMING OUT IN CASE OF POWER OUTAGE
CELL ON CELL	10, 15, 20, 25 Minutes
CYCLE TIME	10, 8, 10,15, 20 MINUTES
ROTATION CYCLE TIME	15, 30, 45, 60, 90 MINUTES SELECTABLE
CELL MATERIAL	TPU

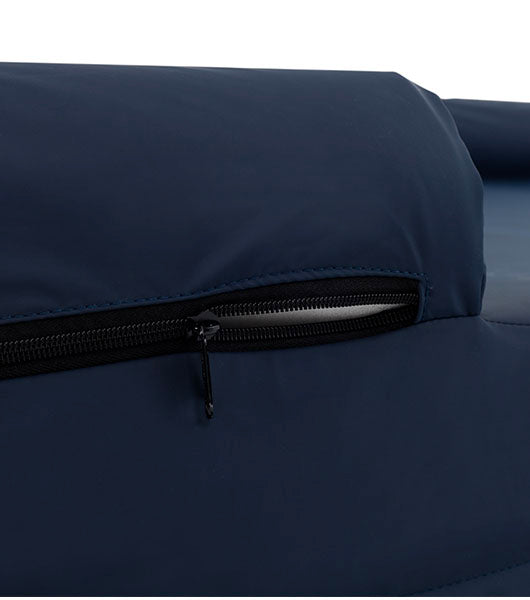

COVER MATERIAL	2 WAY STRETCH PU FLUID RESISTANT WITH ZIPPER
BASE MATERIAL	WOVEN WITH ANTI SLIP COATING
TREATMENT	EFFECTIVE THROUGH STAGE IV
BARIATRIC	NO
MATTRESS DIMENSIONS	80″ L x 36″ W x 8″ H WITH 2″ DEFINED PERIMETER
PUMP DIMENSIONS	11” x 12” x 6”
PUMP WEIGHT	8.6 LBS.
POWER CORD LENGTH	15 FEET
AIR OUTPUT	OVER 10 LPM
WEIGHT CAPACITY	450 LBS.
WARRANTY	2 Year

Parts List

Part #	Description
LRMP	SPARE PUMP
LRMC	SPARE COVER
